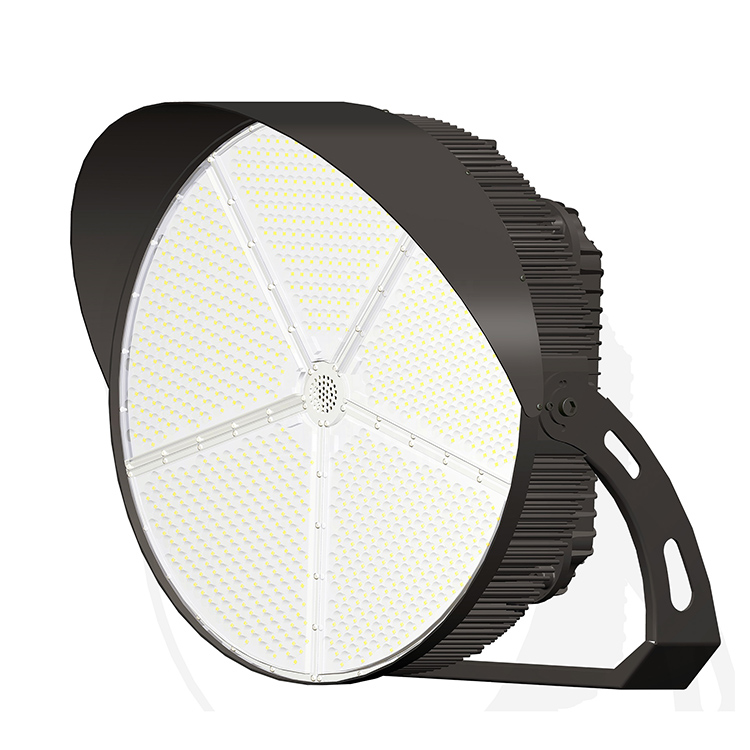

7years warranty 300w -1200w led flood light spot light
| Specification | |||||||
| Model NO. | 3H300 | 3H400 | 3H500 | 3H600 | 3H750 | 3H950 | 3H1200 |
| Power | 300W | 400W | 500W | 600W | 750W | 950W | 1200W |
|
Luminous Flux |
38,486 lm | 50,520 lm | 56,614 lm | 76,819 lm | 84,374 lm | 115,344 lm | 134,087 lm |
| Input V oltage |
100-277V /347-480V |
100-277V /347-480V |
100-277V /347-480V |
100-277V /347-480V |
100-277V /347-480V |
100-277V /347-480V |
100-277V /347-480V |
| Gross Weight |
13.7kgs / 30.2 lbs |
14kgs / 30.9 lbs |
14.1 kgs / 31.1 lbs |
14.94 kgs / 42.8 lbs |
19.5 kgs / 43 lbs |
27 kgs / 59.5 lbs |
28 kgs / 61.7 lbs |
|
Power Factor |
>0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| CRI | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra |
| Driver Brand | Meanwell | ||||||
|
Light Distribution / Beam Angle(°) |

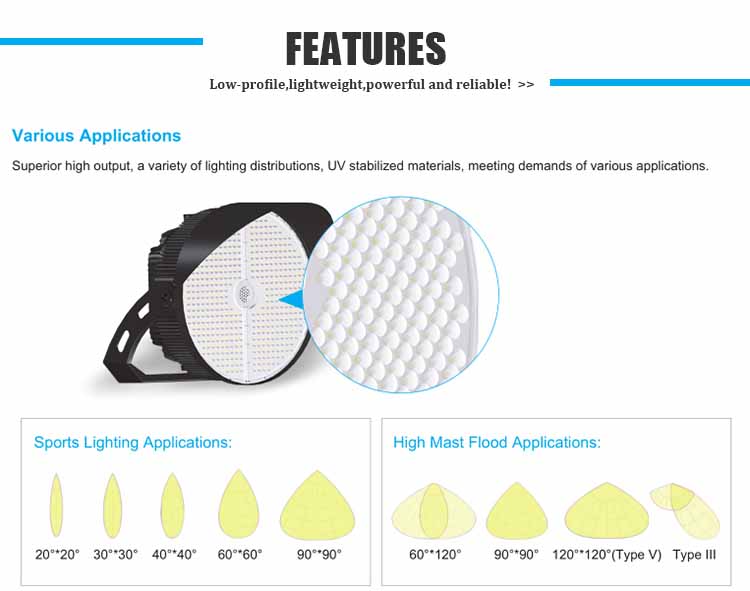

20°*20°, 30°*30°, 40°*40°, 60°*60°, 90°*90°, 120°*120°, 60°*120°, Type III, Type V | ||||||
| Color Temp. | 3000K/4000K/5000K/5700K/6500K (others available) | ||||||
| Dimming Options | 0-10V dimming / Zigbee wireless dimming available | ||||||
| Zigbee Control | On/off, dimming, color turning, grouping, status monitoring, remote control etc (via APP). | ||||||
| Photocontrol | Twist-lock photocell available | ||||||
| SPD | 20kV SPD standard (40kV optional) | ||||||
| IP Rating | IP67 | ||||||
| Operating Temp. | -40°C- 40°C / -40°F – 104°F | ||||||
| Lifespan | >100,000 Hrs (L70 @ 25°C) | ||||||
| Warranty | 7-year warranty for 100-277V version, 5-year warranty for 347-480V version | ||||||
Q1. MOQ and delivery time ?
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. What about the lead time?
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q6. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to realsituation.
